PG螺紋尼龍電纜固定頭
Model : PG
– 主體件和密封件完美的設計可以緊實的抓住電纜
– 電纜可直接穿過固定頭，輕鬆鎖緊
材質 : UL Approved Polyamide 6.6, UL94 V2 + Washer: EPDM
顏色 : 淺灰、深灰、黑

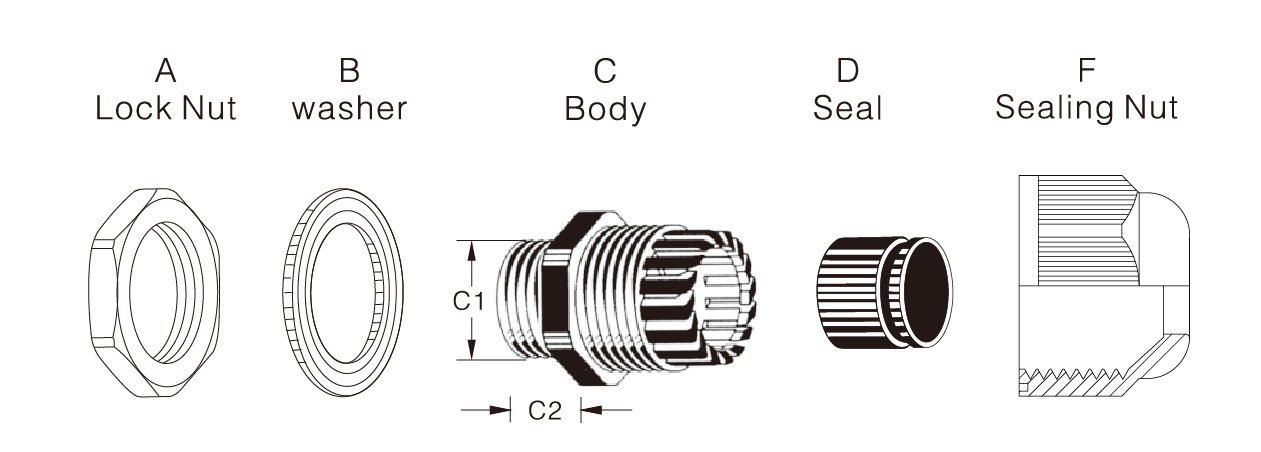

產品外觀圖
產品認證
規格表
| Part No. | cable range | D1 mm | D2 mm | B1 mm | L1 mm | L2 mm | L3 mm | D mm | E mm |
| PG-07 | 3-6.5 | 12.5 | 7.5 | 7.2 | 8 | 145 | 13 | 5 | 19 |
| PG-09 | 4-8 | 15.2 | 10 | 9.9 | 8 | 155 | 15.3 | 5 | 22 |
| PG-11 | 5-10 | 18.6 | 13.5 | 13.1 | 8 | 17 | 17.5 | 5 | 24 |
| PG-13.5 | 6-12 | 20.4 | 13.5 | 13.1 | 10 | 17 | 17.5 | 6 | 27 |
| PG-16 | 10-14 | 22.5 | 17.5 | 17 | 10 | 19 | 19.5 | 6 | 30 |
| PG-21 | 13-18 | 28.3 | 21.4 | 21 | 10 | 21.2 | 25 | 7 | 36 |
| PG-29 | 18-25 | 37 | 28.8 | 28 | 11 | 23.4 | 25.5 | 7 | 45.5 |
| PG36 | 22-32 | 47 | 36.5 | 35.3 | 12 | 27.8 | 30 | 8 | 59.5 |
| PG-42 | 28-38 | 54 | 38.5 | 38 | 14.6 | 31.0 | 32 | 8 | 64.5 |
| PG-48 | 35-45 | 59.3 | 46 | 45.5 | 15.5 | 30.6 | 34.5 | 8 | 69.5 |
