PE冷氣管束帶
Model : BT
用螺釘或釘子將束帶固定在牆壁上, 再將管線束緊
材質: PE
顏色: 各種顏色皆可訂製

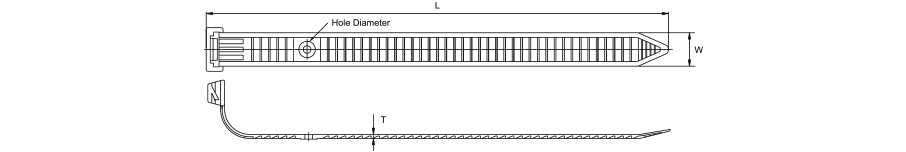

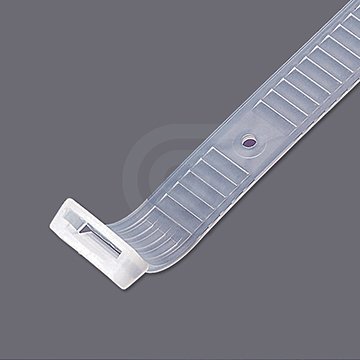

產品外觀圖
產品認證
規格表
| Part.No | Length | Width | thickness | Max.Bundle Dia. | Hole Dia. | Mounting Screw | Min. Loop Tensile Strength | operating temperature | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | kg(lbs) | Max. | Min. | ||
| BT-250 | 235 | 9.25 | 20 | 0.78 | 2.4 | 0.09 | 70 | 2.76 | 4.5 | 0.18 | M4 | 20(44) | 80˚ C (176˚ F) | -40˚ C (-40˚ F) |
| BT-290 | 275 | 10.82 | 20 | 0.78 | 2.4 | 0.09 | 80 | 3.15 | 4.5 | 0.18 | M4 | 20(44) | 80˚ C (176˚ F) | -40˚ C (-40˚ F) |
