雙鎖式固定PCB板間隔柱
Model : CBS-5A
CBS-A 類型:
– 安裝容易、不費時
-雙邊式倒鉤式設計，可牢牢地鎖固
-此設計可固定PC板及電路板
Material : UL approved Polyamide 6.6, 94V-2
Color : Nature Color

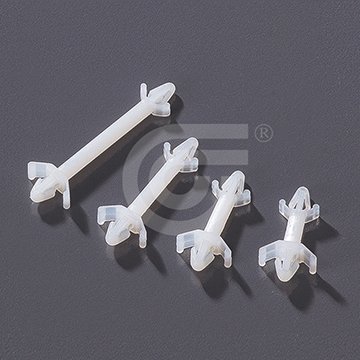

產品外觀圖
產品認證

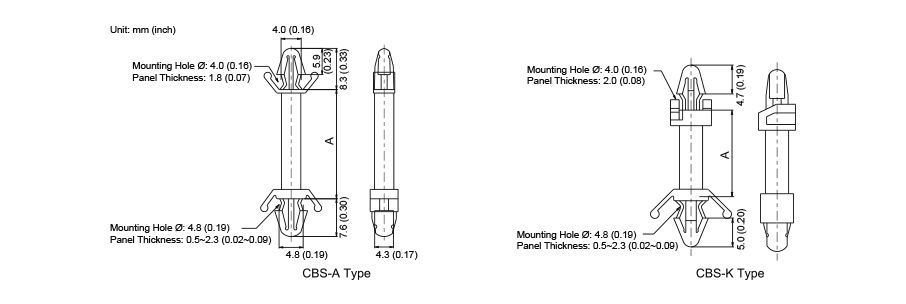

規格表
| Part.No | spacing height(A) | |
| mm | inch | |
| CBS-5A | 4.6±0.3 | 0.18±0.01 |
| CBS-6A | 6.2±0.3 | 0.24±0.01 |
| CBS-9A | 9.2±0.3 | 0.36±0.01 |
| CBS-13A | 12.6±0.3 | 0 .50±0.01 |
| CBS-16A | 15.8±0.3 | 0 .62±0.01 |
| CBS-19A | 19.1±0.3 | 0 .75±0.01 |
| CBS-22A | 22.2±0.3 | 0 .87±0.01 |
| CBS-25A | 25.3±0.3 | 1.00±0.01 |
| CBS-29A | 28.6±0.3 | 1.13±0.01 |
| CBS-35A | 33.3±0.3 | 1.31±0.01 |
| CBS-6K | 6.3±0.3 | 0.25±0.01 |
| CBS-BK | 7.8±0.3 | 0.31±0.01 |
| CBS-9K | 9.3±0.3 | 0.37±0.01 |
| CBS-12K | 11.7±0.3 | 0-46±0.01 |
| CBS-13K | 12.6±0.3 | 0.50±0.01 |
| CBS-16K | 15.7±0.3 | 0.62±0.01 |
| CBS-19K | 19.1±0.3 | 0.75±0.01 |
| CBS-22K | 22.1±0.3 | 0.87±0.01 |
| CBS-25K | 25.1±0.3 | 0.99±0.01 |
| CBS-29K | 28.5±0.3 | 1.12±0.01 |
| CBS-35K | 35.0±0.3 | 1.38±0.01 |
