自黏式扣式扭線環
Model : HW-8A
– 強背膠快速安裝
-可重複捆束及快速拆解
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Black. Nature color

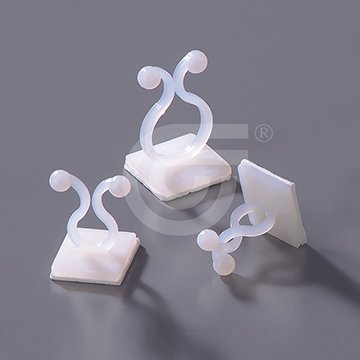

產品外觀圖
產品認證
規格表
| Part.No | A mm | A inch | B mm | B inch | C mm | C inch | D mm | D inch | E mm | E inch | F mm | F inch |
| HW-8Aa | ø8.6 | 0.339 | 24.12 | 0.95 | 17 | 0.699 | 8 | 0.315 | 2 | 0.079 | ø5.4 | 0.213 |
| HW-8Ab | ø16 | 0.699 | 32 | 1.26 | 20 | 0.787 | 11.7 | 0.461 | 2 | 0.079 | ø5.8 | 0.228 |
