產品
尼龍耐候性抗UV束帶
Model : GT-UV
– 一般聚酰胺6,6(PA66)所製成的束線帶特性不敵長期紫外線輻射所造成的損壞
– UV聚酰胺6,6(PA66)製成的產品，皆符合ASTM D6779標準
– UV聚酰胺6,6(PA66)束帶抗紫外線輻射時間比標準聚酰胺6,6(PA66)要長得多
– 使用於戶外，我們推薦紫外線穩定聚酰胺製成的產品系列，
– 一體成型束帶，帶身穿入省力
Material : UL approved Polyamide 6.6, 94V-2
Color : Black

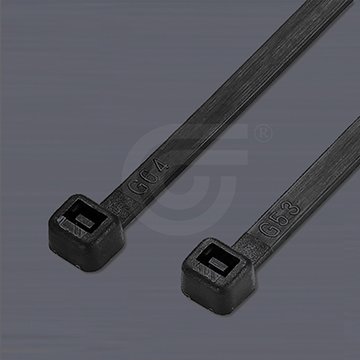

產品外觀圖
產品認證
規格表
| Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
| mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
| GT-80M-UV | 80 | 3.15 | 2.4 | 0.09 | 15 | 0.59 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-100M-UV | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-160M-UV | 160 | 6.3 | 2.5 | 0.1 | 40 | 1.57 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-1501-UV | 150 | 5.91 | 3.6 | 0.14 | 35 | 1.38 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-2001-UV | 200 | 7.87 | 3.6 | 0.14 | 53 | 2.09 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-250ST-UV | 250 | 9.84 | 4.8 | 0.19 | 60 | 2.36 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-300ST-UV | 300 | 11.81 | 4.8 | 0.19 | 76 | 2.99 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-370ST-UV | 370 | 14.57 | 4.8 | 0.19 | 102 | 4.02 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-430ST-UV | 430 | 16.93 | 4.8 | 0.19 | 110 | 4.33 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-300HD-UV | 300 | 11.81 | 7.6 | 0.3 | 76 | 2.99 | 54.4 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-370HD-UV | 370 | 14.57 | 7.6 | 0.3 | 102 | 4.02 | 54.4 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-430HD-UV | 430 | 16.93 | 9 | 0.35 | 120 | 4.72 | 79.4 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-530HD-UV | 526 | 20.71 | 9 | 0.35 | 140 | 5.51 | 79.4 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
